C9 ARM-INSULATED + WALL BRACKET

Specification

• Compatible with: GYSPOT BP.LC-s7, BP.LCX-s7, and GYSPOT PTI-s7 Evolution
• Material: High-rigidity aluminum
• Operating Pressure: 8 bar
• Clamping Force: 550 daN
• Cooling System: Liquid-cooled to electrodes and caps

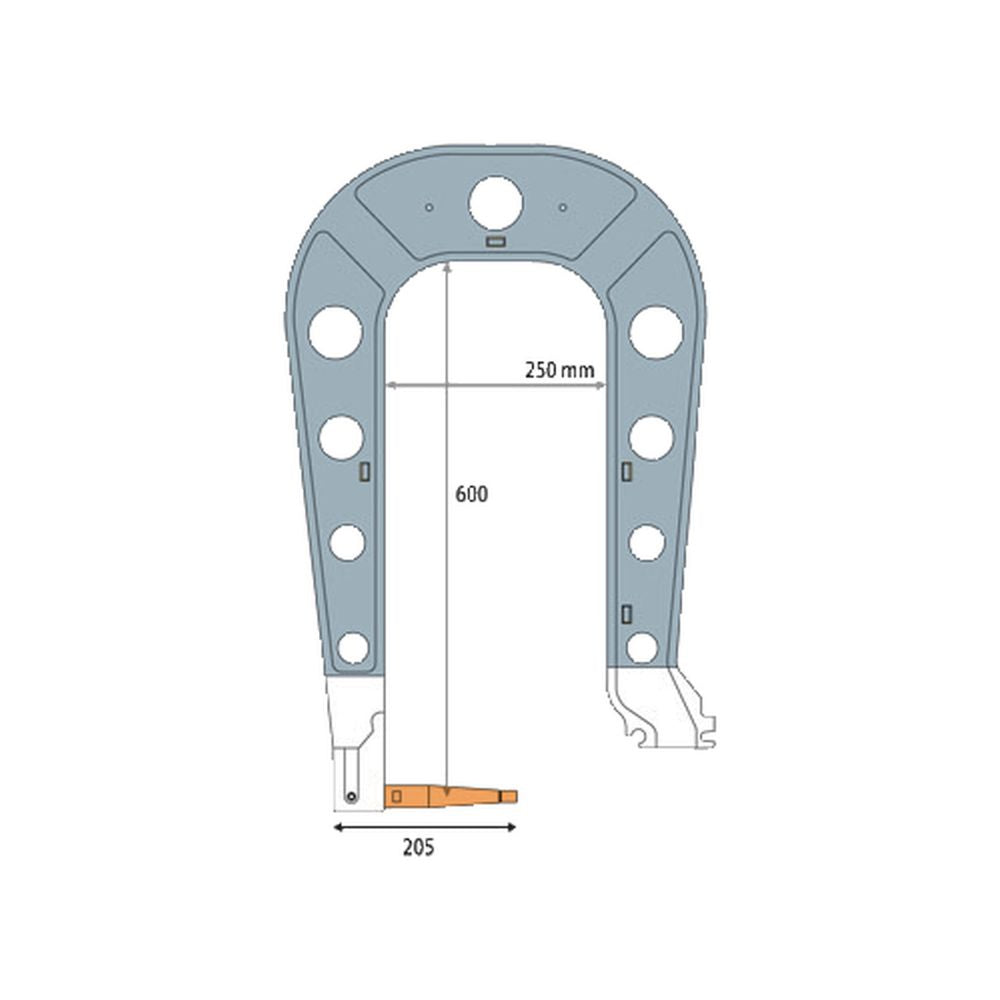

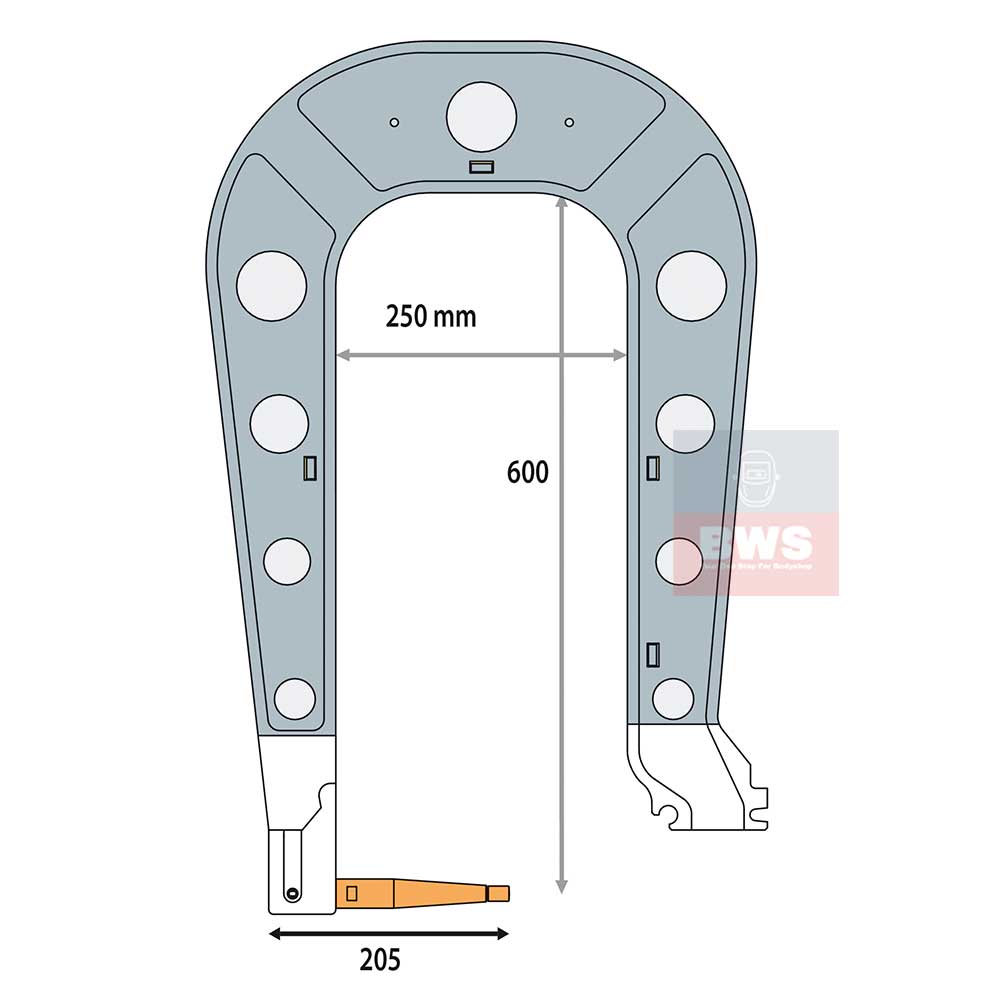

• Product Dimensions: 205 x 250 x 600 mm
• Product Weight: 9.6kg


Features

• Electrically insulated design with specialized paint coating
• Liquid cooling system extending to electrodes and caps
• High-rigidity aluminum construction for durability
• Compatible with interchangeable electrodes and caps
• Designed for accessing various vehicle areas
• Suitable for welding high-strength steels
• Includes wall bracket for convenient storage
• Part of GYS's comprehensive C-arm range

FAQs

1. Q: What types of materials can be welded using the C9 insulated arm?
   A: The C9 arm is suitable for welding various types of steel, including high-strength steels used in modern vehicle construction.
2. Q: Is this arm compatible with all GYS spot welders?
   A: The C9 arm is specifically designed for use with GYSPOT BP.LC-s7, BP.LCX-s7, and GYSPOT PTI-s7 Evolution models. Compatibility with other models should be confirmed with GYS.
3. Q: What is the benefit of the liquid cooling system?
   A: The liquid cooling system extends to the electrodes and caps, ensuring optimal performance, consistent weld quality, and prolonged component life.
4. Q: How does the wall bracket benefit the user?
   A: The included wall bracket provides a convenient storage solution, keeping the arm safely stored and easily accessible when not in use.
