EA-160
Price Exc Tax
Brand: Jasic
Information on Jasic 5 year warranty
Why Buy From BWS?

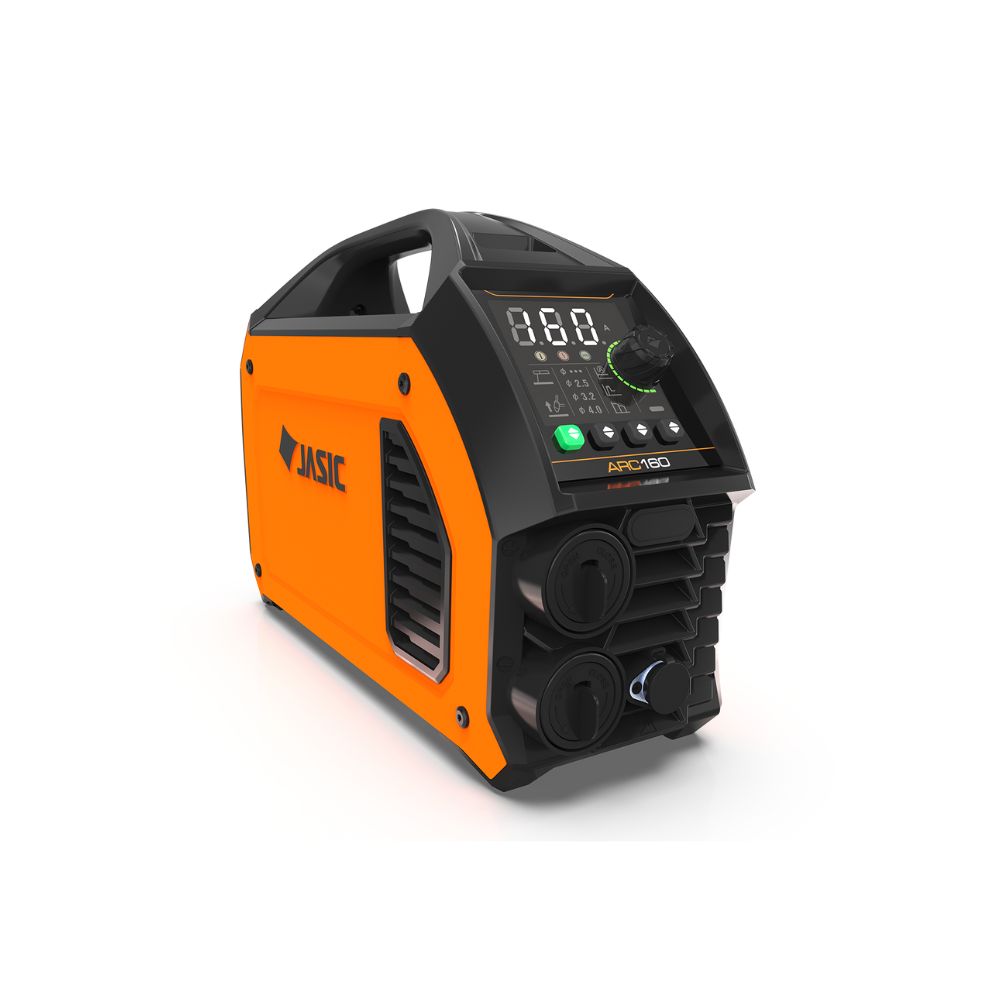

The Jasic EVO Arc 160 PFC Inverter is designed for versatility and can be used both in workshops and on-site. Its compact size and lightweight design make it portable and easy to transport. The machine features heavy-duty 16-25mm dinse sockets, which provide a secure connection for welding cables.
Some additional features of the Jasic Arc 160 PFC Inverter include anti-stick and arc-force functions, which help prevent electrode sticking and improve arc stability. It also has a hot start feature for easy striking of difficult-to-start electrodes.
Overall, the Jasic Arc 160 PFC Inverter is a professional-grade welding machine that offers reliable and efficient performance. Its advanced technology, including IGBT and lift TIG functionality, makes it suitable for various welding applications in workshops or on-site.
Rugged, ergonomic design
• Clear Vision technology
• Intelligent synergic control
• Smart Lift TIG
• Adaptable wide voltage range
• Quick factory reset
• Anti-stick, adjustable hot start and arc force
• Dedicated wireless remote control (optional)
• Remote control receiver module (optional)
• Power factor correction (PFC), generator friendly
• ABAP: Active Balancing Air Passage
• Fan on demand
• Voltage Reduction Device (VRD)
• Key power electronic component protection
• Overcurrent and overheat protection

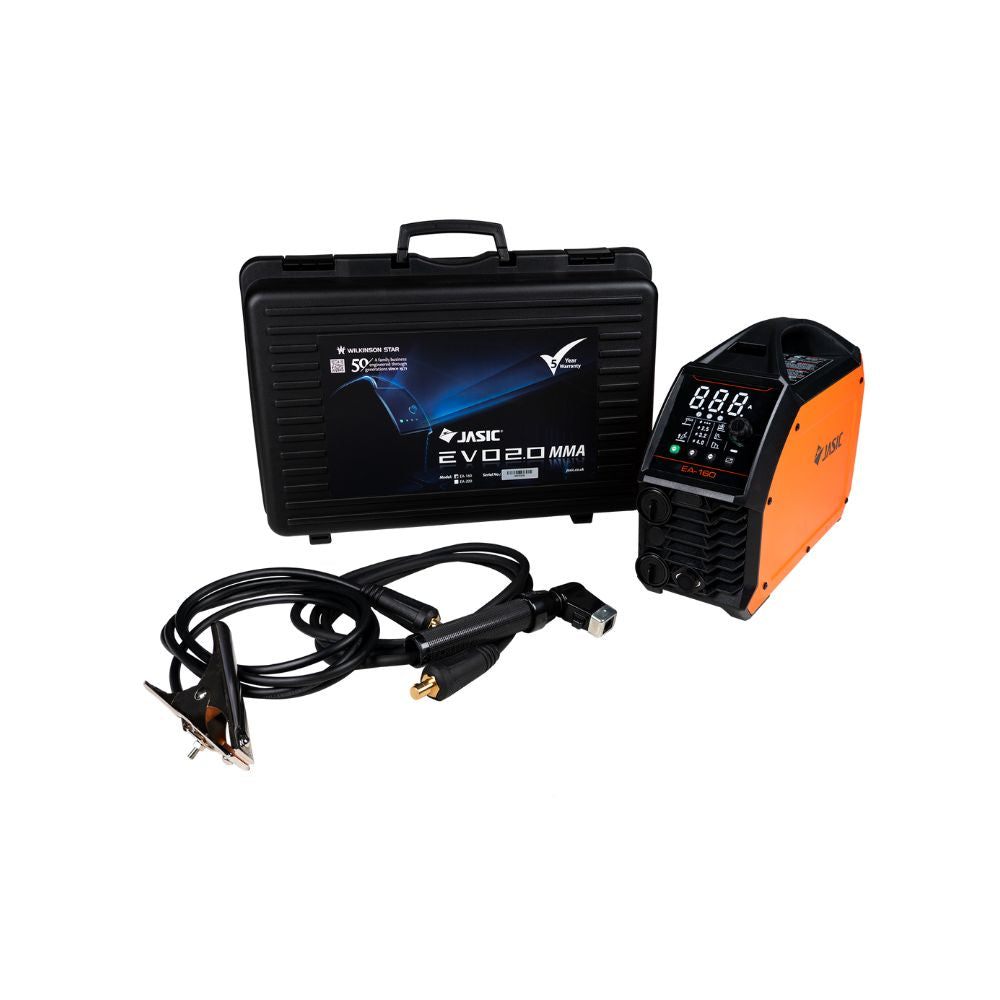

• Complete with a protective case and MMA leads
Rated input power - 2.2KVA (110V) - 3.2KVA. (230V)
Current range - 10-120A (110V) - 10-160A (230V)
Rated duty cycle @ 40°C - 25%
Efficiency - 86%
Power factor - 0.99
Idle state power
MMA: 38.2W TIG: 7W
Protection class - IP23S
Insulation class- H
Dimensions LxWxH-413 × 150 × 311mm
Weight-7.2Kg
Recommended generator size - 5KVA(110V)
7.5KVA (230V)
Package Includes Inverter power source, Operating instructions and MMA Leads
