Brand: Fronius Type: Mig Welders

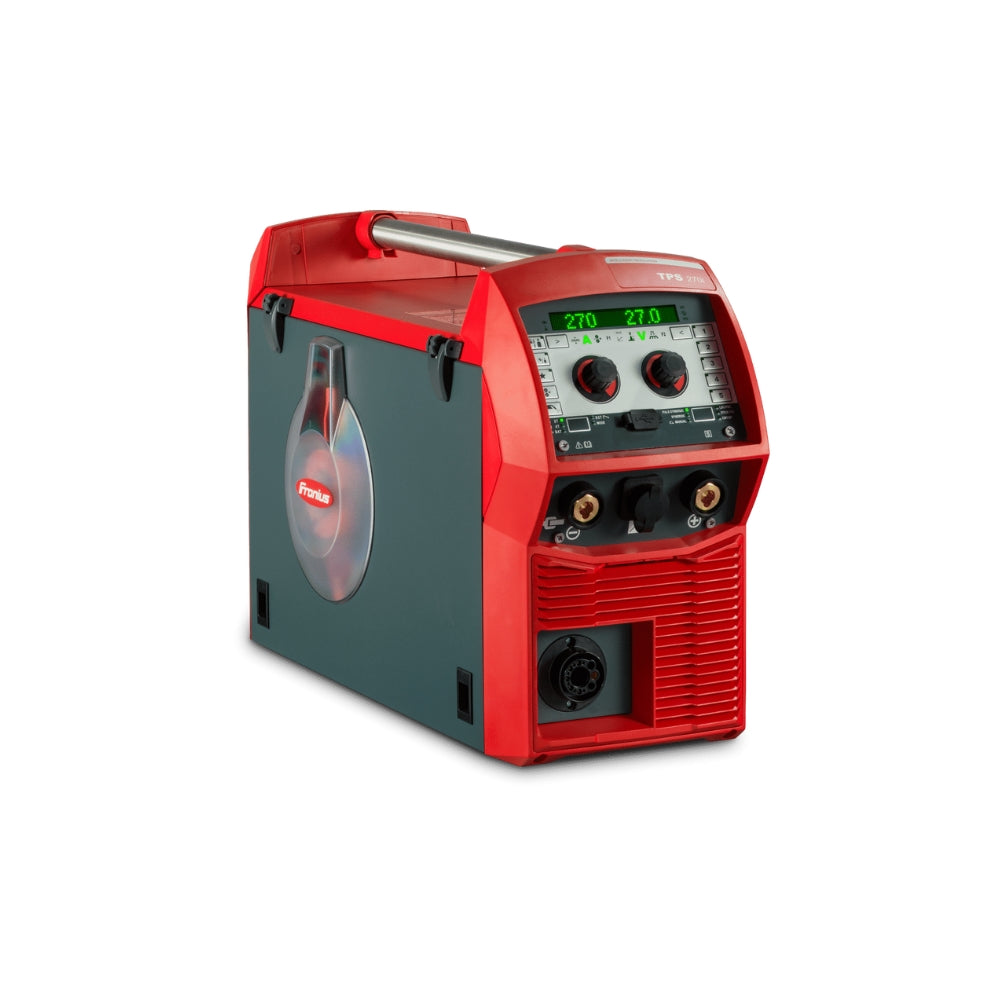

The FRONIUS TPS 270I C PULSED INVERTER MIG is a fully digitised, microprocessor-controlled inverter power source designed for professional welders who demand excellence. This compact welding system combines advanced features with precision engineering to deliver flawless welds consistently across various applications. With its single-knob operation and synchropulse functions, this welder offers exceptional ease of use while maintaining the high performance standards expected from Fronius.
Mercedces Benz Approved
The modular design and easy system expansion capabilities ensure outstanding adaptability to specific welding requirements, making it an ideal choice for professionals in automotive, manufacturing, and industrial sectors.
The Fronius TPS 270i C requires a 3-phase 400V power supply with a tolerance of ±15%. It has a maximum primary current of 15.3A and requires a 16A slow-blow fuse. Multi-voltage models are available that can operate on 3-phase 220V/480V supplies.
The Fronius TPS 270i C is primarily a MIG/MAG welder with pulse capabilities, but it also supports STICK welding. It offers a welding current range of 3-270A for MIG/MAG applications and 10-270A for rod electrode (STICK) welding, making it versatile for various welding tasks.
The standard package includes the Fronius TPS 270i multi-process welder, Synergic & Pulse software, integrated wire feeder, air-cooled MTG 320i MIG gun (14'), a 13' ground cable, 0.035" (0.9mm) and 0.045" (1.2mm) setups and consumables, a flow meter with gas adapter, and a 3-year parts and labor warranty.
Yes, the Fronius TPS 270i C with pulse capability is excellent for aluminum welding. For optimal aluminium welding performance, you can upgrade to the optional Push-Pull MIG torch (320i Push-Pull, 19 ft.), which provides better wire feeding control for softer aluminium wires.
Manufacturer Fronius
Part No AFP-TPS270ICG
Welding current max. 270.0A
Welding current min. 3.0A
Welding current / Duty cycle [10min/40°C] 270A / 40%
Operating voltage 14.2-27.5V
Mains frequency 50-60Hz
Mains voltage 3 x 400V
Mains fuse 16A
Dimension / b 276.0 mm
Dimension / l 687.0 mm
Weight 32.7 kg
Machine only
4,075,170 TPS 270i C PULSE /4R/FSC
4,066,012 Welding process STANDARD
44,0001,1406 Feeder roll U 0.9-1mm

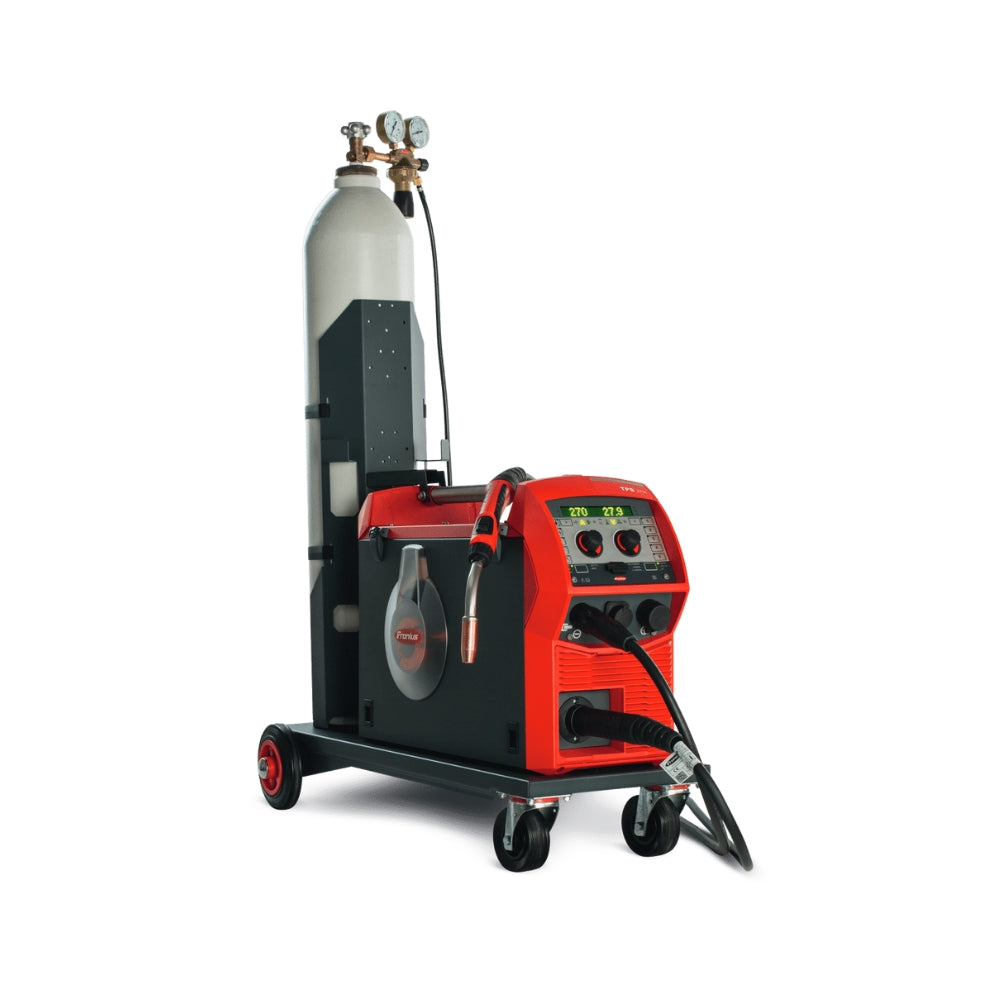

Package with Trolley
4,075,170 TPS 270i C PULSE /4R/FSC
4,066,012 Welding process STANDARD
44,0001,1406 Feeder roll U 0.9-1mm
4,077,014 TU Car 4 Standard
4,035,928 MTG 320i /FSC/UD/3.5m/45°/LED
44,0350,5119 BK Fe ø1.0 /G/W/5m
44,0350,5187 Wear part kit MTG 320i ø1.0
43,0004,0161 Ground Cable 4m x 50mm earth clamp
The primary features of the TPS/i are built upon cutting-edge technology. Compared to earlier models, the processor operates significantly faster and has the capability to calculate multiple variable parameters. This enables a remarkably precise analysis, leading to enhanced control over the welding process. As a result, you'll experience fewer splatters, smoother transitions during droplet formation and ignition, greater arc stability, and an overall increase in welding speed. With these advancements, welding has never been as straightforward and of such high quality.
The Fronius Jobmaster torch is the ultimate combination of ergonomics, functionality and practicality. You can control all the welding properties from the torch handle by using the control buttons and enclosed digital display
Perfect starting, perfect arc starting time after time, precise rapid power and wire speed controls ensure crisp precise arc starting every time.
Precise control of output ensures reduced heat input and allows faster welding speeds with pulsed welding. Positional welding is possible with minimal skill.
Pro Installation packages mean one of our dedicated welding engineers will deliver , setup and instruct how to use your welder at your premesis. In some curcumstances and if requested welding inspectors can be used to carry out weld testing on your equipment if required.
