SIP PX4-3/200B BELT-DRIVEN COMPRESSOR SIP

SIP PX4-3/200B BELT-DRIVEN COMPRESSOR

Name: SIP PX4-3/200B BELT-DRIVEN COMPRESSOR
Brand: SIP
SKU: PX4-3/200B
Price: 750.0 GBP
Availability: InStock

.price-ui--loading { display: block !important; opacity: 1 !important; }

£750.00 - £950.00

PX4-3/200B

Price Exc Tax

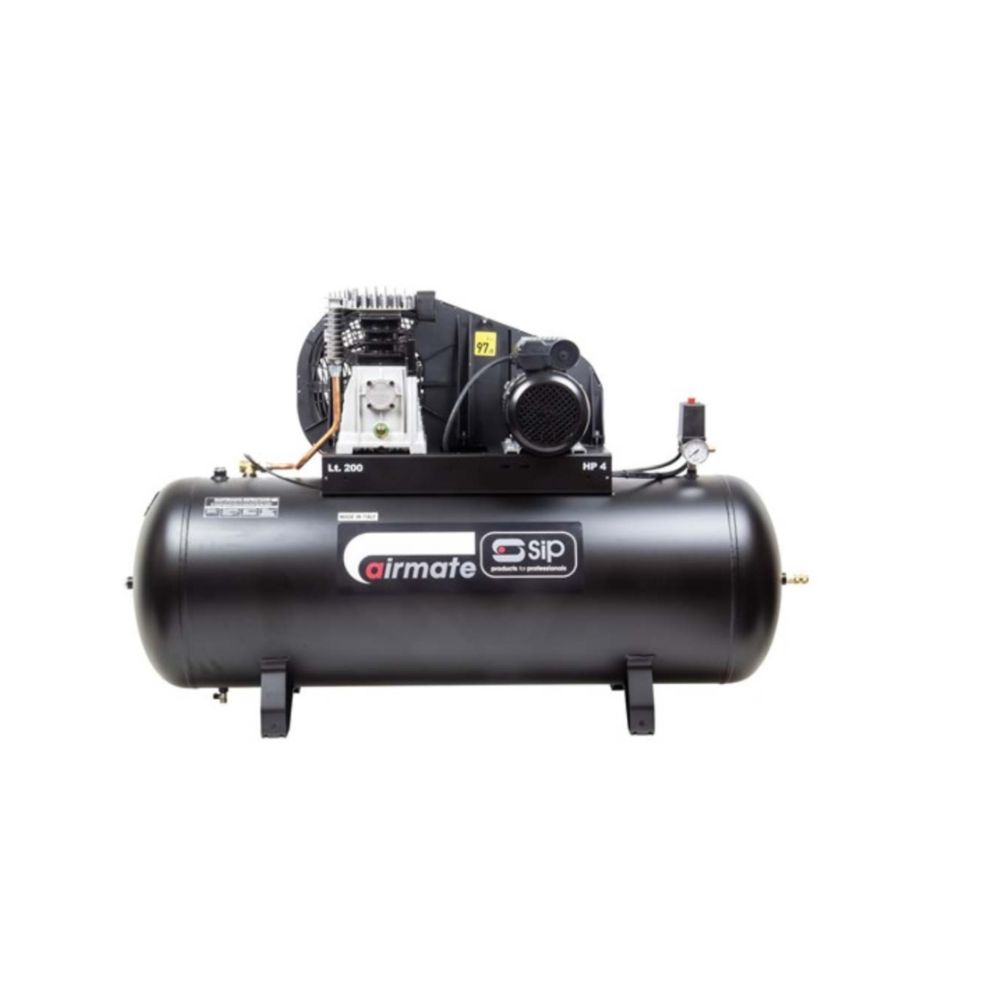

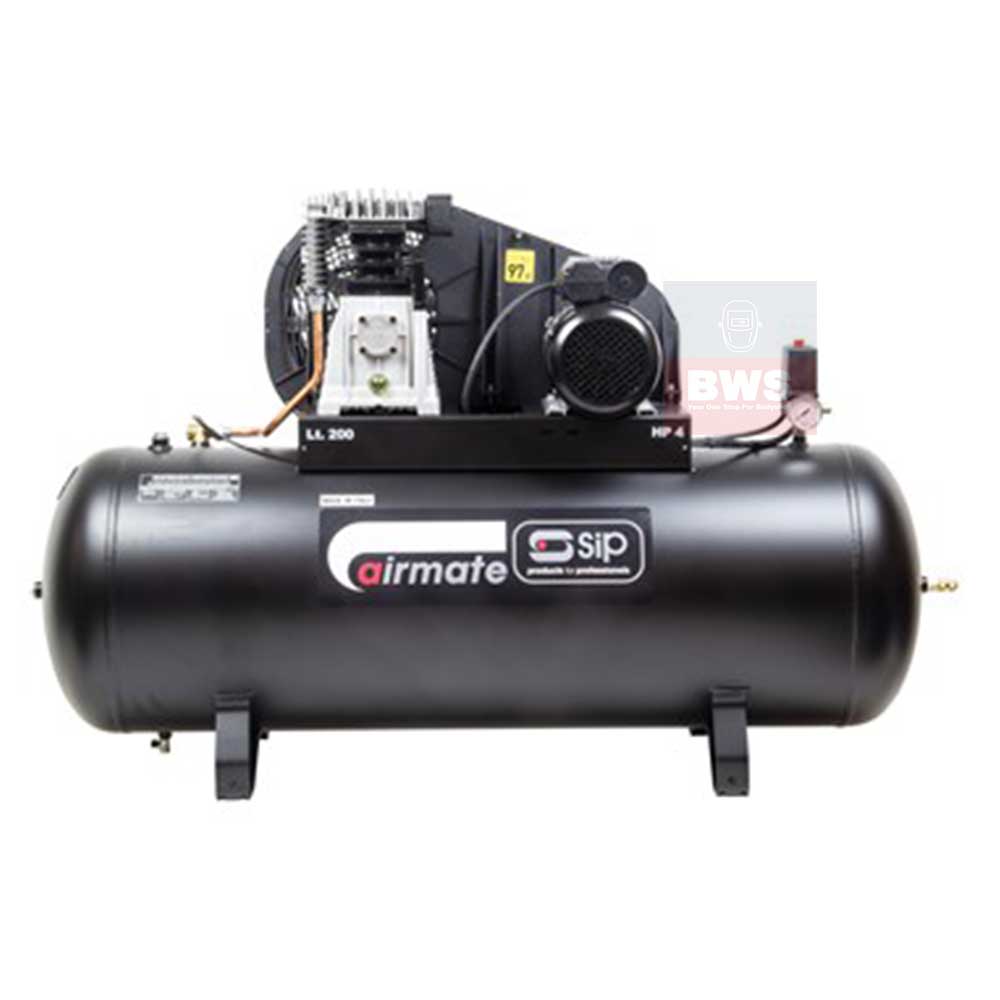

SIP PX4-3/200B BELT-DRIVEN COMPRESSOR 400V 200L

SKU 05308

The SIP PX4-3/200B Belt-Driven Compressor is a powerful oil-lubricated unit with a multi-finned flywheel, aluminium aftercooler, and heavy-duty B3800 pump for performance in all applications.

PRO Installation Available-Select PRO OPTION

FEATURES

400v (20A) 3-PHASE input supply; 4hp (3kW) motor
Oil-lubricated and belt-driven compressor with a
heavy-duty B3800B pump for rugged performance
200ltr air receiver; 145psi (10bar) max. air pressure
18CFM (510ltr/min) max. piston displacement
14CFM (396ltr/min) max. free air delivery (FAD)
Multi-finned flywheel for improved cooling and
longer pump life; powerful forced air cooling
Fitted with a heavy-duty aluminium aftercooler
Durable cast iron barrel and finned manifolds
Oversized crankcase for improved lubrication
Strong moulded plastic belt/flywheel guard
Optional 02069 wheel kit sold separately
Made in Italy / 2-year warranty

SPECIFICATION

Input Supply 400v(20amp)
Motor Power 300hp (3kW)
Receiver Size 200litres
Piston Displacement
18CFM (510litres/min)
Max. Free Air Delivery 14CFM (396 litres/min)
Max. Pressure 145psi (10 bar)
Noise Level 97dB(A)
Gross Weight 96kg
Packaged Dimensions 430 x 1500 x 1090mm

PACKAGE

1x SIP 05308 PX4/200B Belt-Driven Compressor

Currency

SIP PX4-3/200B BELT-DRIVEN COMPRESSOR

SIP PX4-3/200B BELT-DRIVEN COMPRESSOR 400V 200L

SKU 05308
