Brand: TECNA

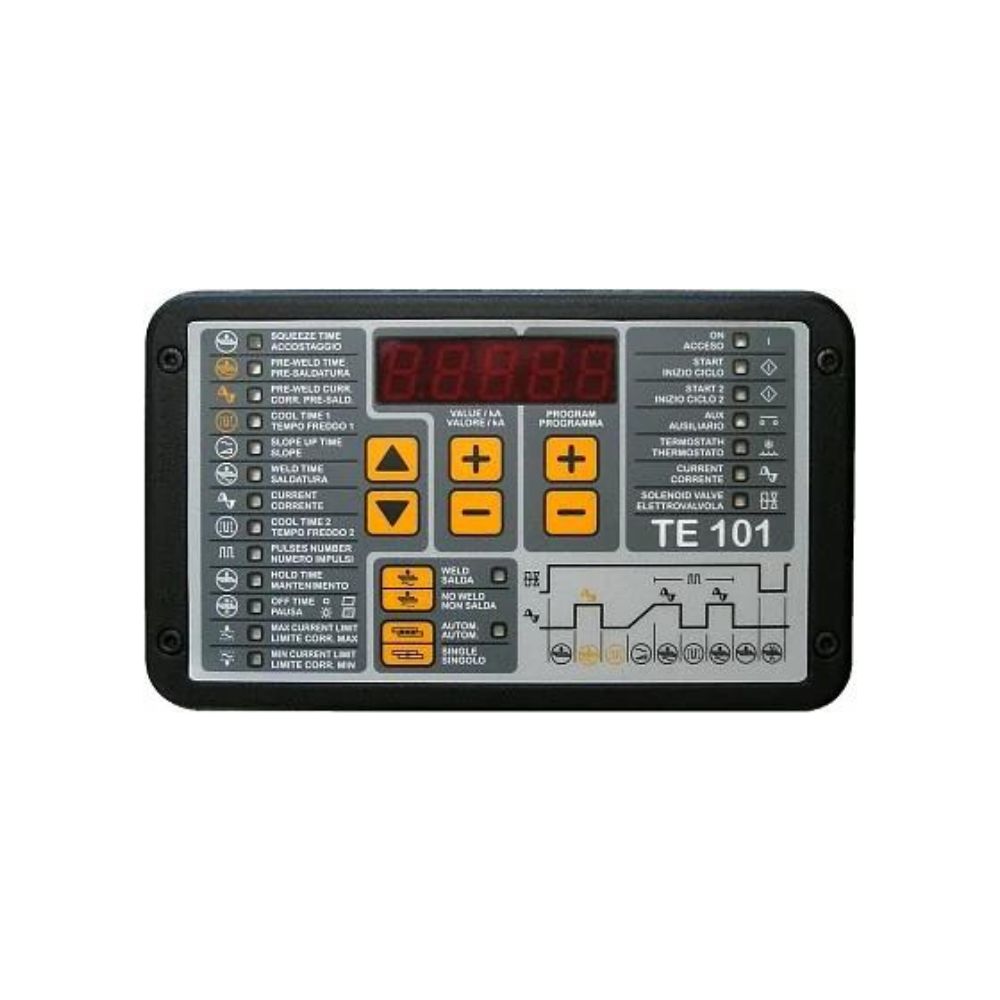

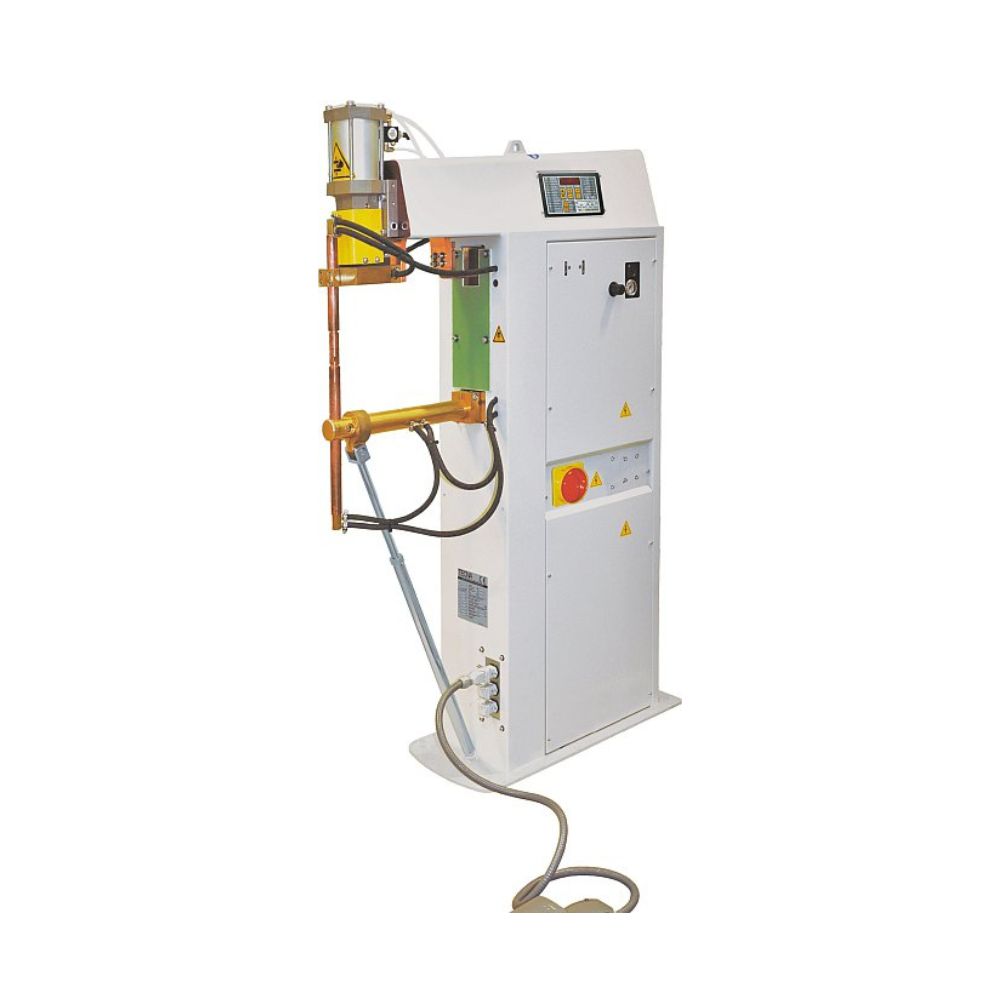

TECNA Linear Type spot welders provide improved weld control and quicker welding compared to X-type welders, along with built-in TE101 controls. These spot welding guns are handheld and air-operated, equipped with water-cooled arms, electrodes, and electrode-holders for efficient production work. They are available in 2-phase 230 or 400V supply options.
The 4665 model offers a 35kVA spot welding output at a 50% duty cycle, while the 4666N model offers 50kVA at a 50% duty cycle.
One of our technical teams has professionally installed this product on your premises (UK Only).
4665N
Power @50% : 35Kva
Max Power: 67Kva
Electrode Force: 1056 lbf
Supply: 220/400V
Weight 220kg
4666N
Power @50% : 50Kva
Max Power: 84Kva
Electrode Force: 1056 lbf
Supply: 220/400V
Weight 225kg
