Cobra By Stealth Fume Extraction 230v

Name: Cobra By Stealth Fume Extraction 230v
Brand: SWP
SKU: WFE-007
Price: 1918.80 GBP
Availability: InStock

£1,918.80

Shipping calculated at checkout.

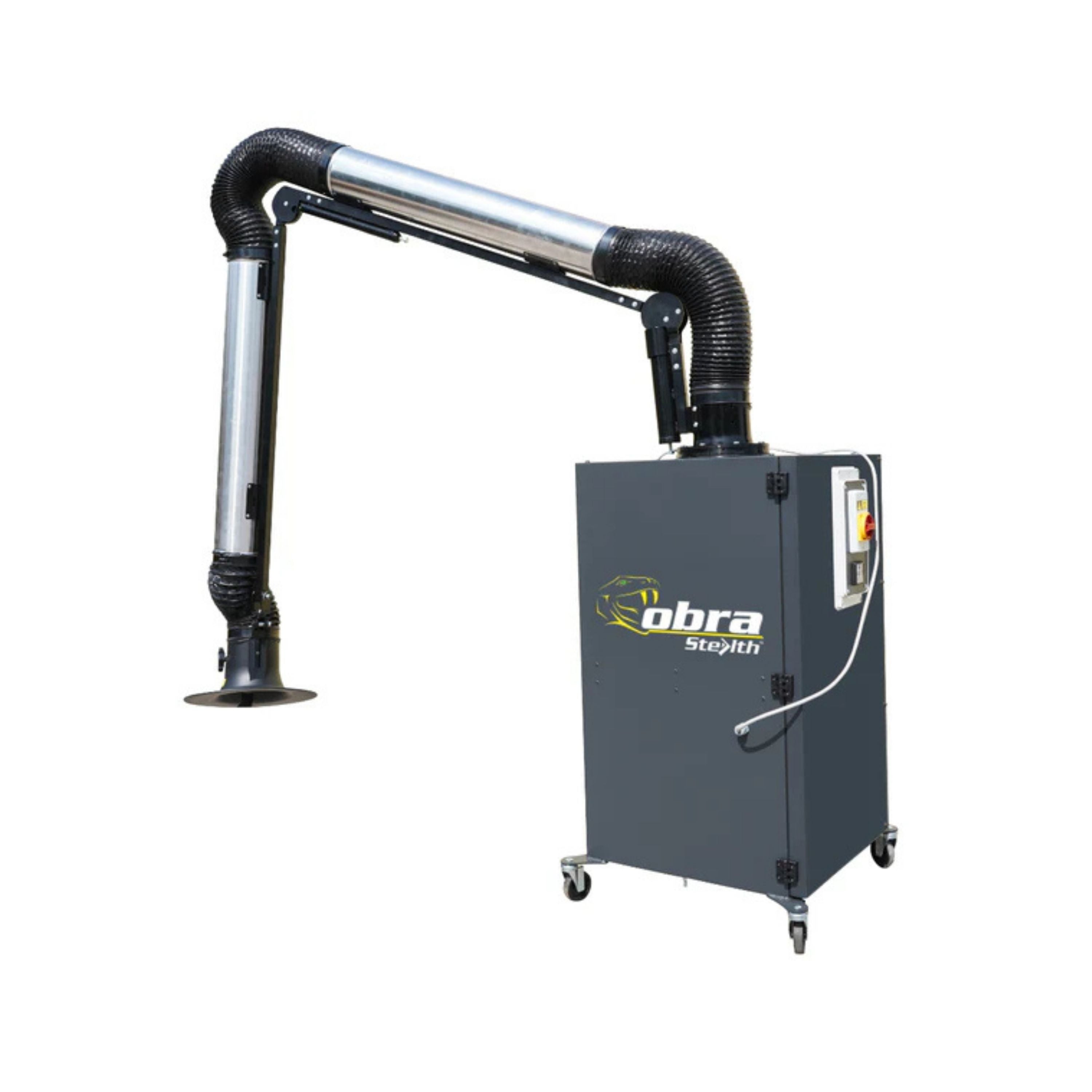

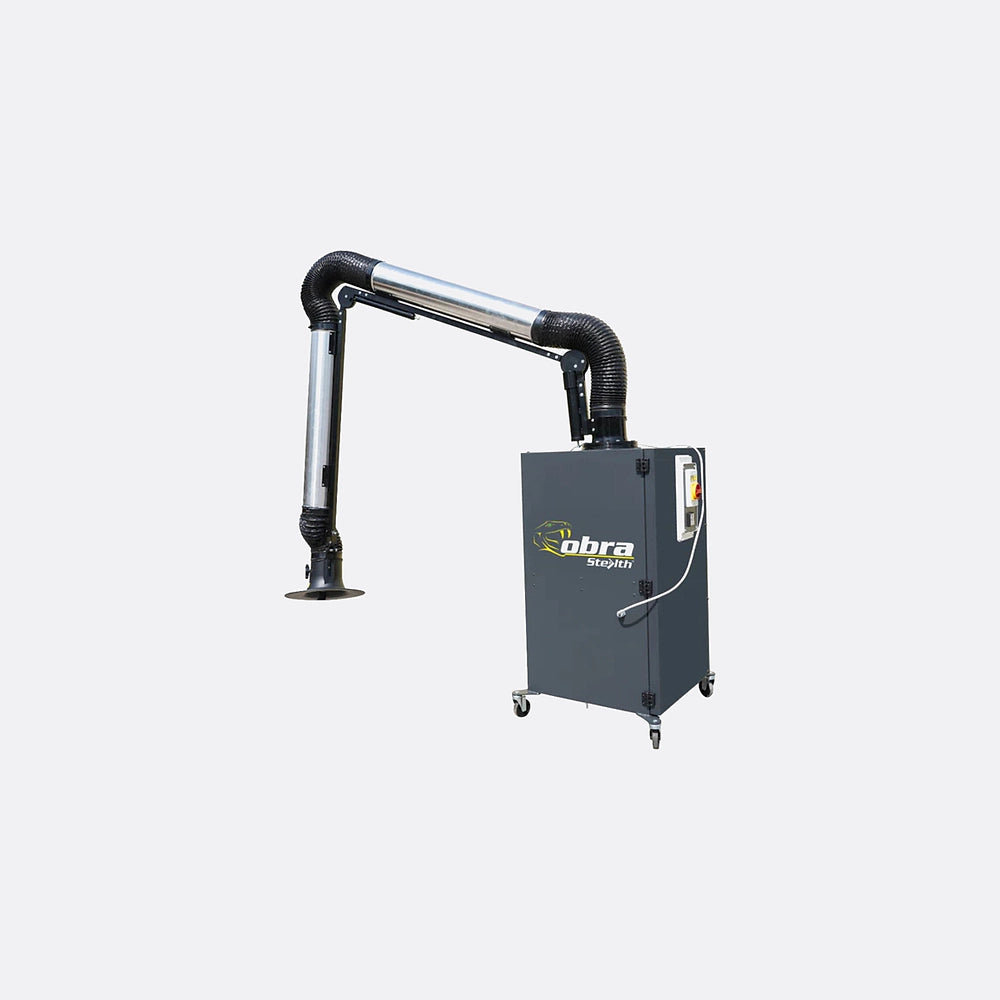

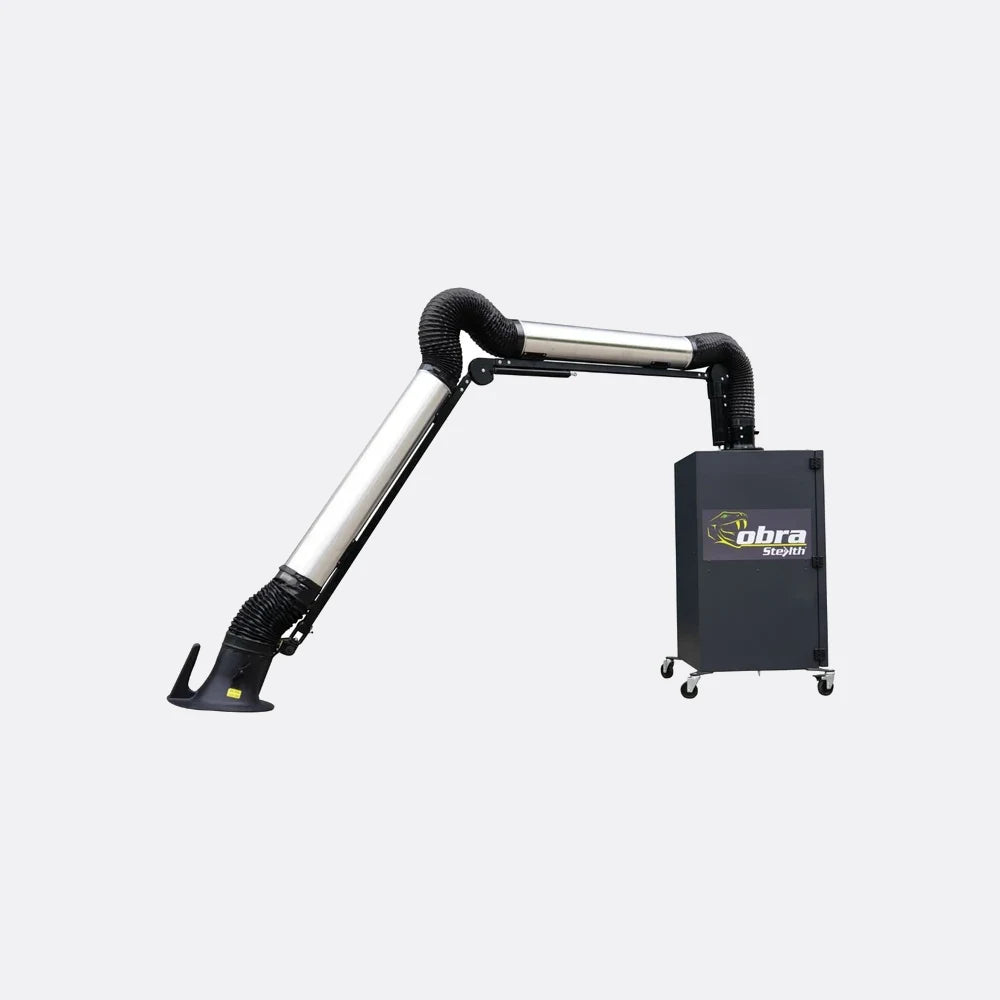

COBRA BY STEALTH FUME EXTRACTION 230V is a professional workshop fume extraction unit for controlling welding fumes during vehicle repair and fabrication work.

Key Features

230V workshop power supply
Welding fume extraction
Suitable for professional bodyshops
Practical workshop-mounted design
Helps improve working conditions
Supported by BWS engineers

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Supply

230V

Warranty

2 years

Free Delivery

UK mainland delivery

Service

In-house engineers

Support

0161 223 1843

Expert Advice

Dan Jennings says

This is a mobile welding fume extraction unit for use in bodyshops, fabrication areas and general mechanical workshops. It captures fumes close to the welding operation, then passes them through staged filtration and activated carbon before the filtered air is returned to the workplace.

In practice, the 150 mm extraction arm needs positioning close to the weld without obstructing the operator or shielding gas. The unit is intended for intermittent workshop extraction rather than replacing good general ventilation, particularly when welding coated, painted or contaminated materials.

Correct electrical setup is important. The 240 V version requires a suitable dedicated supply with appropriate circuit-breaker and differential protection. Filters also need checking and replacing at the correct intervals, as a loaded prefilter or saturated carbon stage will reduce airflow and leave odour in the working area.

A common issue is placing the hood too far from the arc and then assuming the extractor is underperforming. Keeping the arm close, maintaining clear airflow and servicing the filter pack regularly gives dependable extraction and better day-to-day workshop efficiency.

Dan Jennings, Senior Engineer

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

Mobile extraction and filtration unit designed to capture and deodorise welding fumes at the source
Available as the SWP Cobra Stealth WFE006 model for 110V supplies
Highcapacity airflow supports effective fume capture in confined workshop areas
Flexible 3 m extraction arm allows the hood to be positioned close to the welding area
150 mm extraction arm diameter provides a practical connection size for weldingfume capture
Large activatedcarbon filter helps reduce weldingfume odours
Integrated hour counter supports planned maintenance and filterchange monitoring
Safety cutout switch provides controlled shutdown of the extraction unit
Compact wheeled design allows the unit to be repositioned around the workshop
Quiet 75 dBA operation is suited to regular use in professional bodyshops and fabrication areas
Suitable for welding bays, repair workshops and other areas requiring localised fume extraction
Serviceable design supports ongoing inspection, filter replacement and workshop maintenance
Backed by BWS technical advice, installation support and aftersales servicing for professional users

Specification

Input Voltage

110V

Product Code

WFE-006

Nominal Airflow

1,400 m³

Hood Airflow

1,300 m³

Motor Power

1.5 HP (1.1 kW)

Noise Level

75 dBA

Carbon Filter Quantity

4.5 kg

Filtering Surface

500 × 500 × 75 mm

Extraction Arm Length

3 m

Arm Diameter

150 mm

Dimensions

93.6 × 55 × 63.5 cm

Weight

82 kg

Power Cable Length

5 m

Circuit Breaker Protection

16A, Curve C

Differential Protection

IΔn ≤ 30mA, Type AC

Warranty

2 years

FAQs

What is the correct power supply for this Cobra fume extraction unit?

The Cobra Stealth range is available in different voltage versions. The 230V version requires a suitable single-phase 230V workshop supply. Check the product label and order details before installation, as the related WFE-006 model is listed as 110V and the 240V version uses a different model code.

What airflow and extraction reach does it provide?

It provides a nominal airflow of 1,400 m³/h and approximately 1,300 m³/h at the hood. The flexible extraction arm is 3 metres long with a 150 mm diameter, allowing the hood to be positioned close to the welding point for effective capture.

What filtration does the Cobra use, and is it suitable for grinding dust?

The unit uses mechanical filtration with a metal filter, prefilter, high-efficiency filter and a 4.5 kg activated-carbon section for odour control. It is intended for welding fume extraction and should not be used for grinding, sanding or deburring dust, or for flammable vapours and liquids.

Is the unit practical for use across a workshop?

Yes. It is a mobile unit with a compact footprint and integrated wheels, so it can be repositioned between welding areas. It measures approximately 93.6 × 55 × 63.5 cm, weighs 82 kg, operates at around 75 dBA and includes an hour counter and safety cut-out switch. BWS can also provide setup, servicing and technical support.
