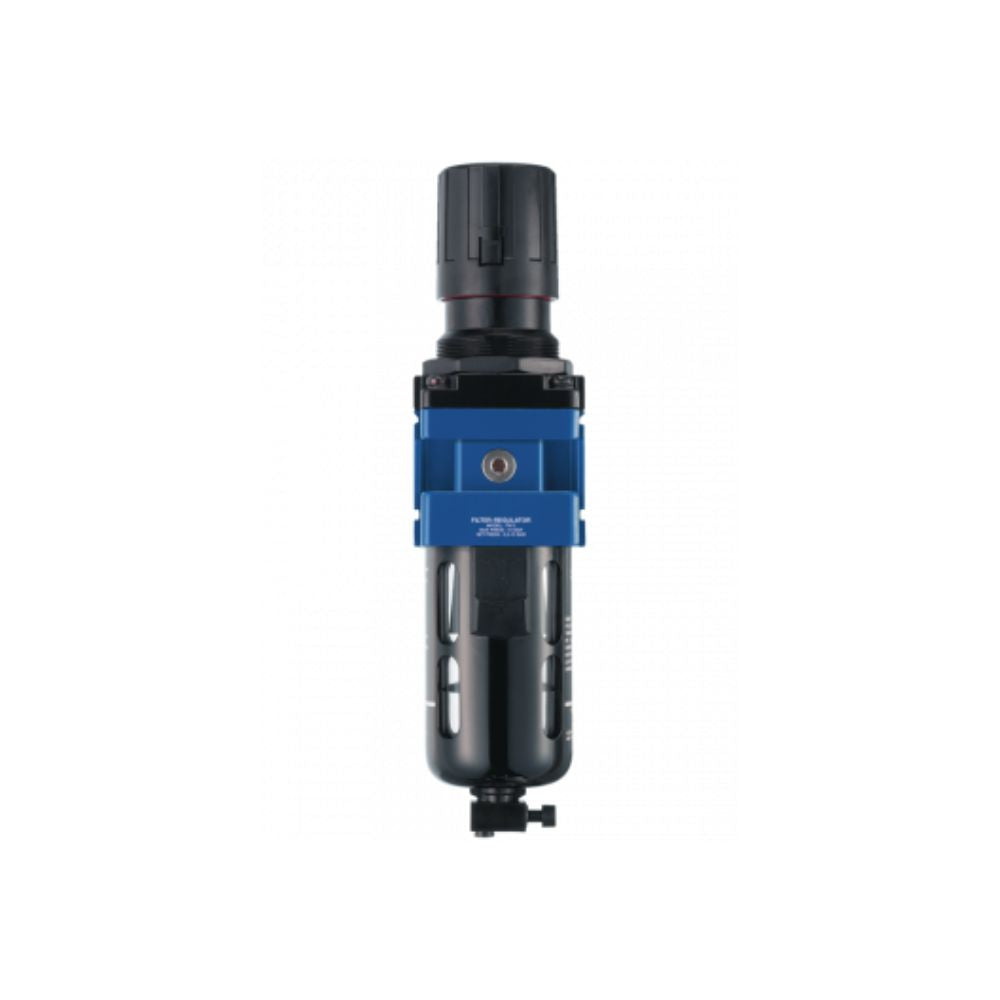

PREVOST ALTO 3 WALL MOUNT FILTER REGULATOR
TM 3
-
Price Exc Tax
Pneumatic Airline Filter Regulator with gauge
The Best for Bodyshop and Workshop Installations!
High Quality Water and Moisture Filtration Unit
Construction : Body : Aluminium Polycarbonate bowl with metallic protection
TM3 Equipped with : Manual drain
TM D3 Equipped with : Automatic drain
TM3 Equipped with : Manual drain
TM D3 Equipped with : Automatic drain
Temperature : +5°C to +50 °
Gauge port 1/8
Includes

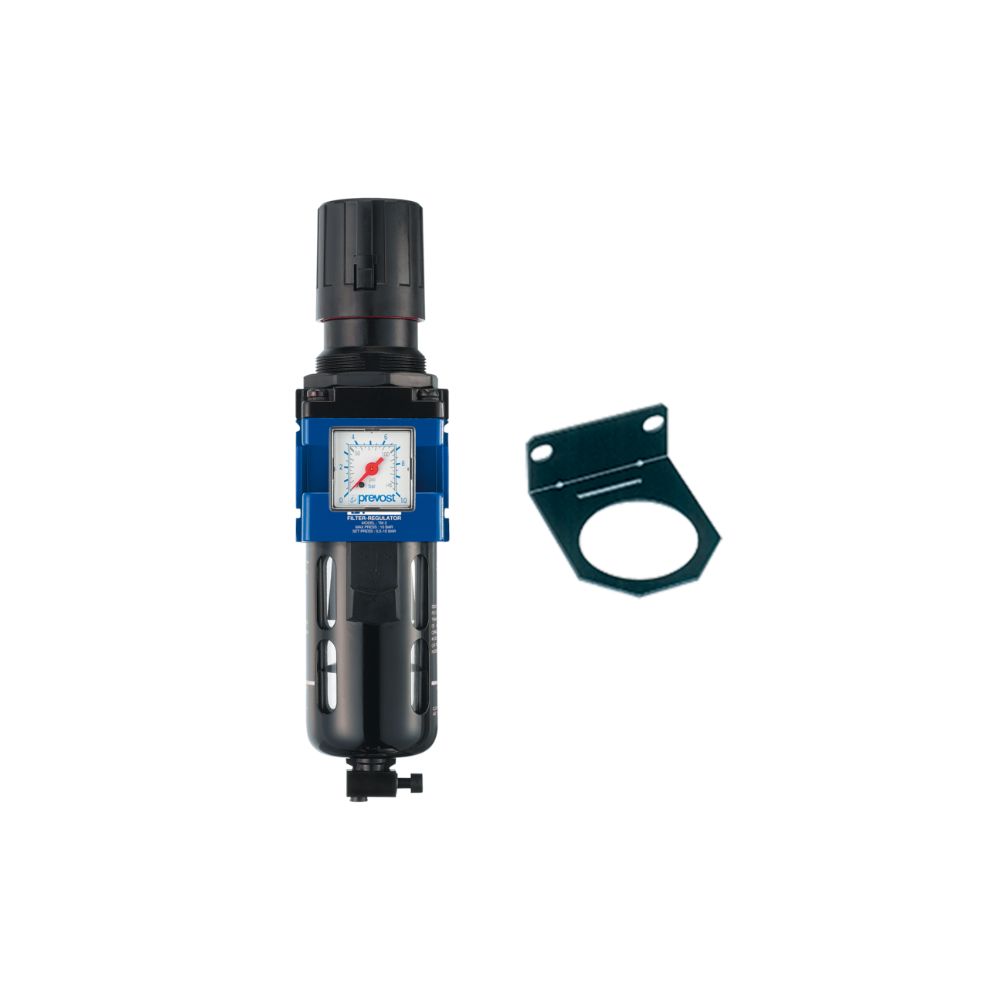

Regulator + TP Q3 Bracket + MT CA1040 Gauge
TECHNICAL SPECIFICATION
| SKU | BSPP female thread | Flow rate (l/min at 7 bar ΔP=1bar) | Operating pressure (bar) | Filtration (µm) |
|---|---|---|---|---|
| TM3 | G 3/8 | 3000 |
Inlet: 12 Outlet: 0.5-10 |
25 |
| TM305 | G 1/2 | 3000 | Inlet: 12 Outlet: 0.5-10 | 5 |
| TM D3 | G 1/2 | 3000 |
Inlet 12 Outlet 0.5-10 |
25 Auto Drain |

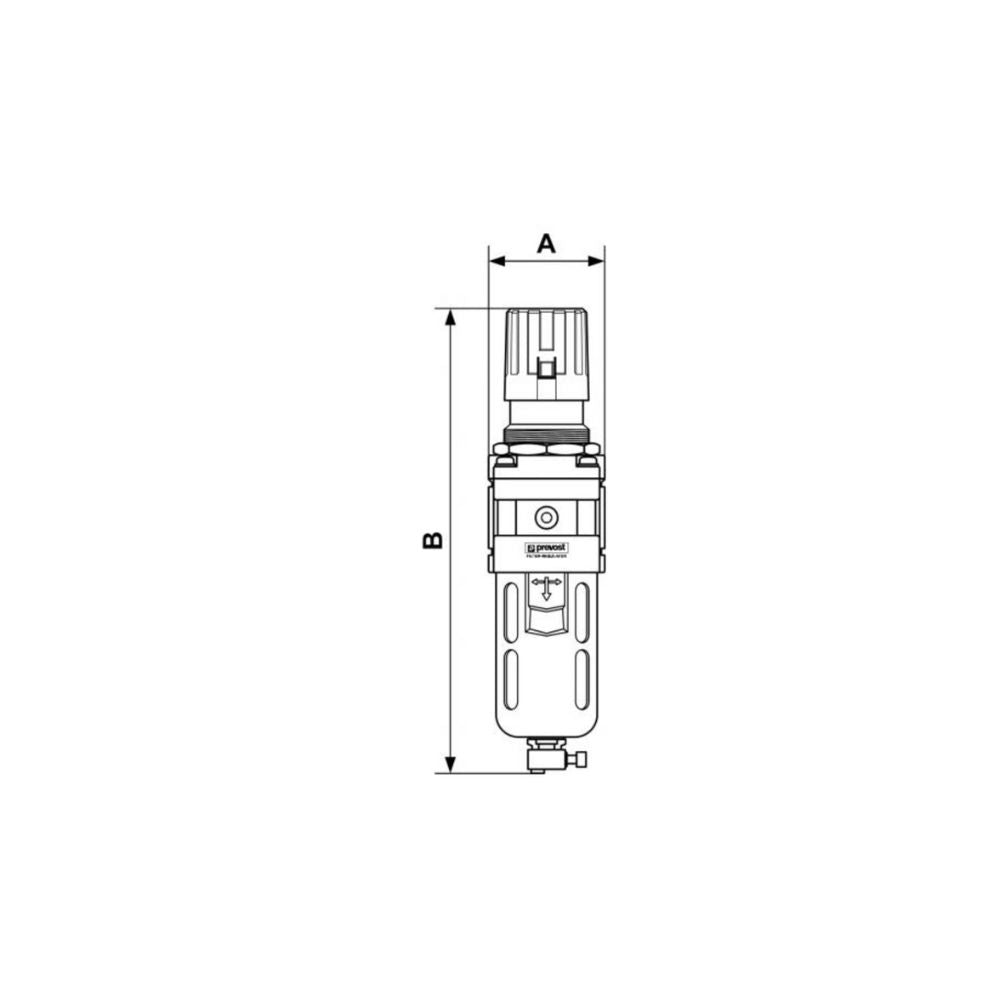

DIMENSIONS
| REF |
A (mm) | B (mm) |
|---|---|---|
| TM3 | 70 | 280 |
| TM305 | 70 | 280 |
| TM D3 | 70 | 330 |
